State-of-the-Art Factory & Scalable Capacity

Manufacturing Capacity & Analytical Infrastructure

Chieron has invested in massive capacity expansion with future demand in mind: 350 KL current equipment volume with +200 KL expansion under finalization, 7 ISO-8 cleanrooms, and an 80,000 sq. meter dedicated land bank.

Facility: 8/2/293/82/564/A43/ 2nd Floor, Prasanth Towers, Road No 92, Jubilee Hills, Hyderabad, Telangana 500096
350+ KL
Total Plant Capacity

+50 KL in existing block & +150 KL in new block under finalization (+200 KL expansion).

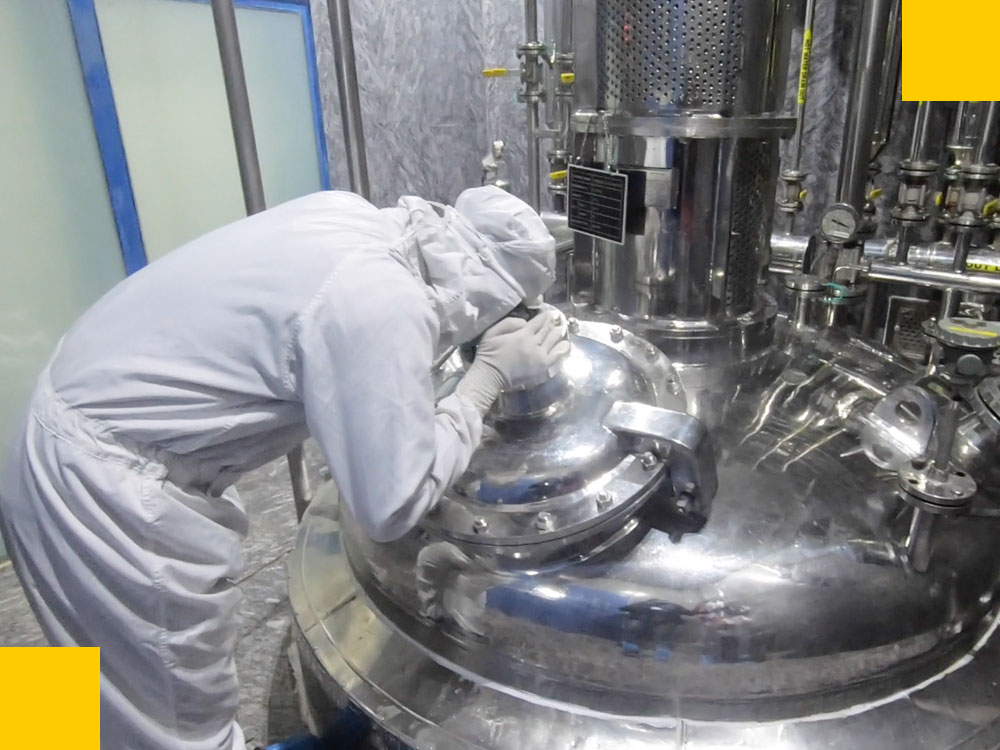

7 Cleanrooms
ISO 8 Certified

Class 100,000 certified cleanrooms with HEPA filtration for sterile finish APIs.

100 KL ZLD
Zero Liquid Discharge

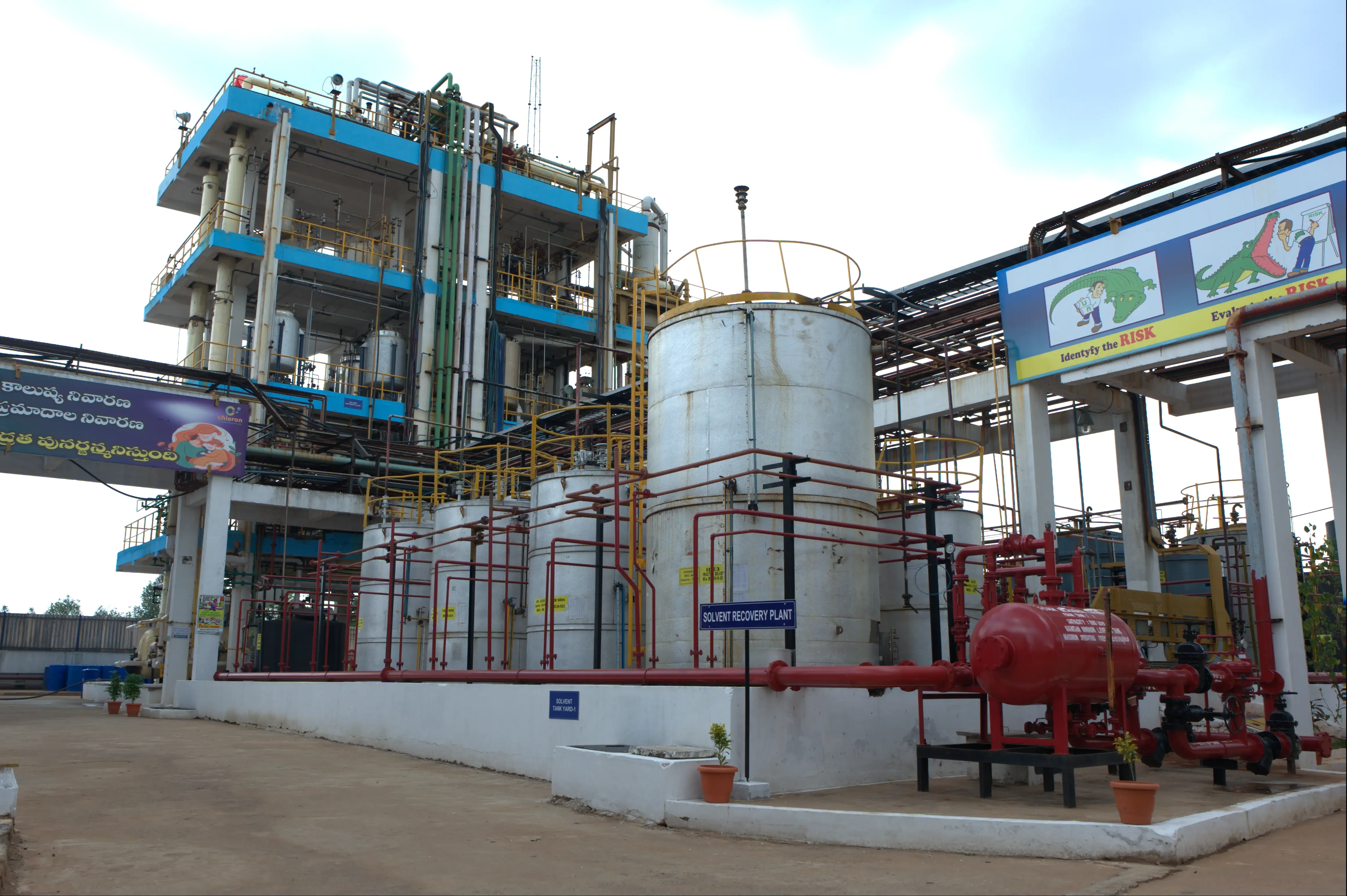

30 KL Solvent Recovery Plant (SRP) & 100 KL Zero Liquid Discharge ETP facility.

80,000 m²
Dedicated Land Bank

Dedicated custom manufacturing blocks can be constructed under partnership modules.

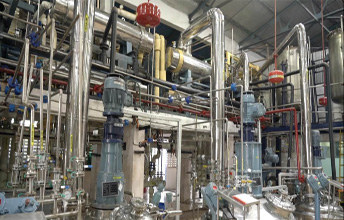

Production Block-1 (PB-1)

Site Details: Equipment Capacity – 135.7 KL | Cryogenic liquid CO2 reactions supported.

12 Critical Equipment Classes
Stainless Steel Reactors
High-grade SS316 multi-scale synthesis reactors
19 Units
Glass Lined Reactors (GLR)
Corrosion-resistant for high acid/aggressive chemistry
10 Units
Centrifuges
Top & bottom discharge isolation systems
6 Units
Agitated Nutsche Filters (ANF)
Closed solid-liquid separation units
3 Units
Agitated Nutsche Filter Driers (ANFD)
Combined filtration and drying in single closed unit
8 Units
Leaf Filters
Polishing and carbon treatment filtration
6 Units
Nutsche Filters
Intermediate cake washing and filtration
2 Units
Rotacone Vacuum Drier (RCVD)
Gentle vacuum drying for heat-sensitive APIs
1 Units
Rapid Dry Drier
Continuous rapid flash drying
1 Units
Multimill
Variable speed particle size reduction
4 Units
Sifter
Vibratory sieving and particle classification
2 Units
Micronizer
Jet milling for ultra-fine target PSD profiles
2 Units
Synthetic Versatility

Chemistry Capabilities & Complex Reactions

Our engineering and chemical teams handle complex transformations under strict safety and process controls.

Cross coupling reactions using homogeneous catalysts & ligands

High Pressure & High Vacuum distillation chemistry

Organometallics & Fluorine Chemistry

Nucleoside & Carbohydrate Chemistry

Chiral inductions & Asymmetric catalysis

Hydrogenation reactions with heterogeneous catalysts (Raney Ni / Pd-C / Rh / Pt-C)

Cryogenic reactions supported by liquid CO2 systems

Closed-loop telescopic one-pot syntheses
